Slash Fuel Costs Up to 15%
with Proactive Hull Cleaning

Autonomous robotic cleaning that restores hull efficiency — 24/7, in any port, without damaging paint.

Powerful mechanical steel brush technology. Up to 800 m²/hour. Zero diver risk. Full IMO compliance.

📩 Get Your Free Fuel-Saving Analysis

Every Day of Fouling Costs You Money – We Fix That

Biofouling silently drains your fuel budget, slows your vessel, and puts you at regulatory risk. Our robot reverses all three.

Up to 18% Fuel Penalty
800 m²/h Steel Brush Cleaning

Removes calcified barnacles and thick oysters with durable steel brushes – paint-safe with pressure feedback.

Speed Loss & Missed Berths
Flexible Berth-Side Cleaning

Scheduled during port stays with full safety coordination — no impact on cargo operations or departure times.

Divers Can't Work in Turbid Water
Proprietary Turbid-Water Cameras

Navigates zero-visibility ports like Shanghai & Zhoushan – no job cancellation.

IMO Biofouling Guidelines
Proactive Compliance & Documentation

Stay ahead of port state inspections with clean-hull records and reports.

Limited Hull Access
Flexible Magnetic & Vacuum Adsorption

Adapts to steel, aluminum, and fiberglass hulls – no vessel off-limits.

See It in Action – Real Port Conditions

Watch the robot operate in zero visibility, strong currents, and heavy fouling — all without paint damage.

0
m²/hour Cleaning Speed
0
% Fuel Cost Reduction
0
+ Vessels Cleaned
0
Operation Capability

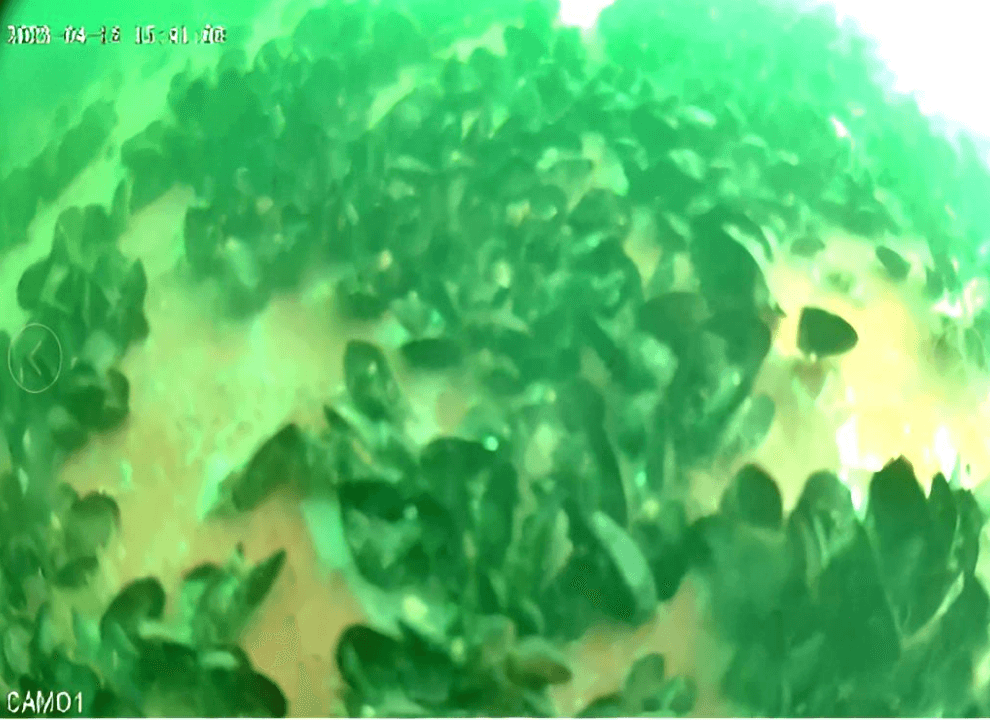

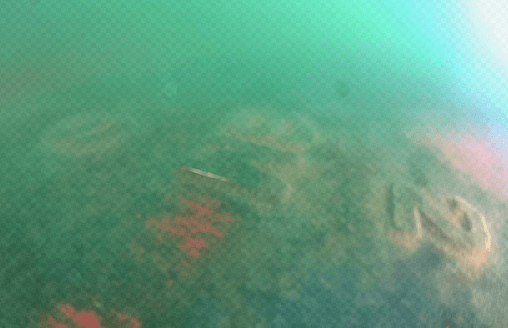

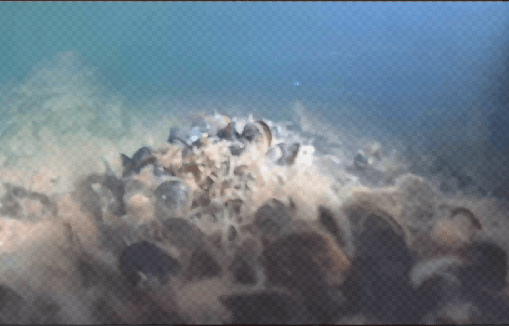

Before & After Cleaning

A fouled hull can increase fuel consumption by 10-18%. See the difference one cleaning makes.

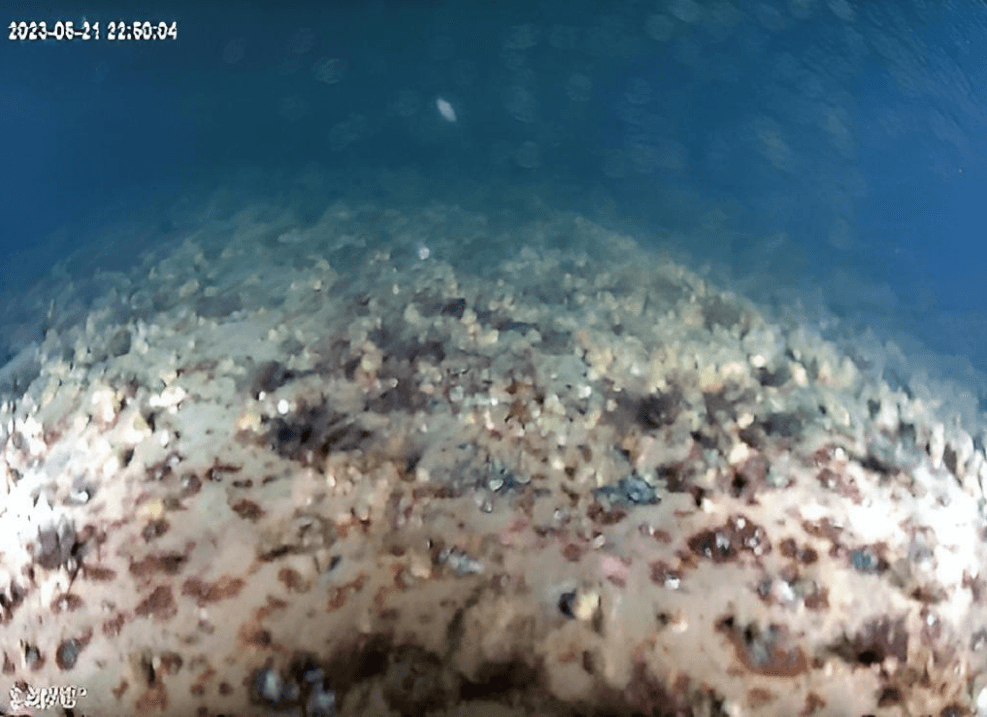

Heavily fouled hull
Before Speed loss up to 1.8 knots
Barnacles on hull
Before Fuel penalty +12%
Biofouling accumulation
Before Increased resistance
Underwater fouling
Before Reduced maneuverability

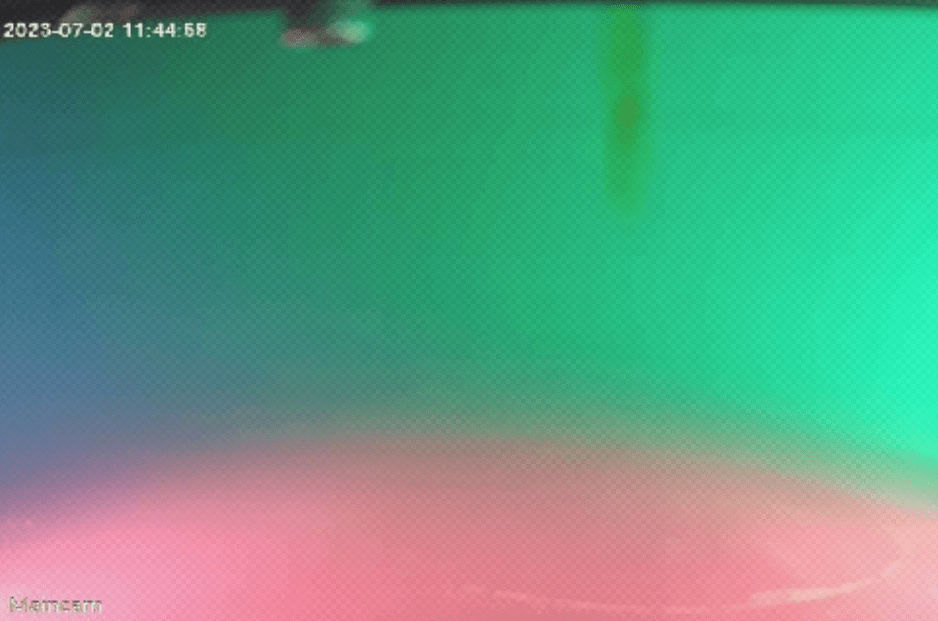

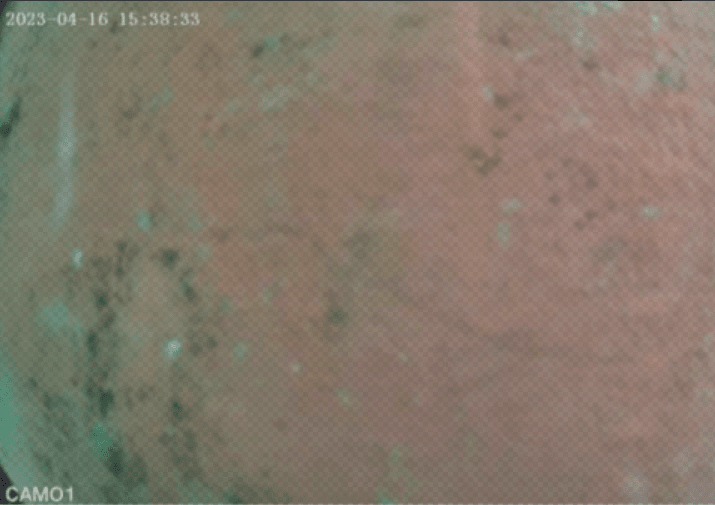

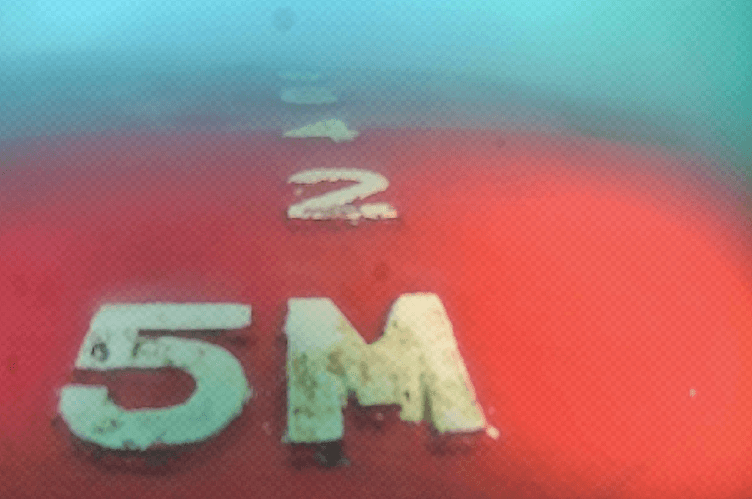

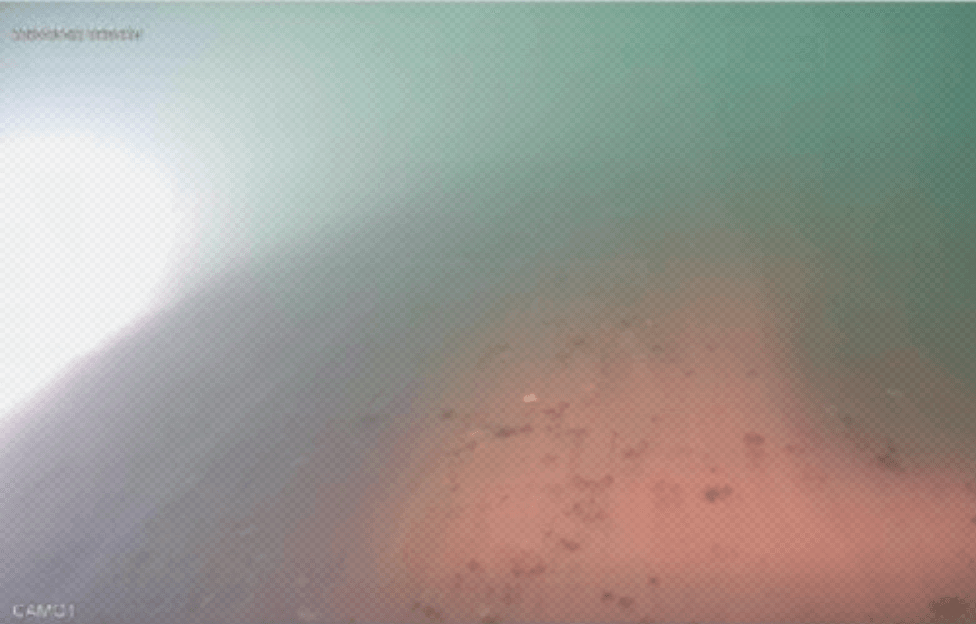

Clean hull after
After Full speed restored
Smooth surface
After Fuel back to baseline
Paint intact
After Zero coating damage
Hull restored
After Ready for voyage

Proven Results at Major Ports

Real vessels, real savings — see how we've helped shipowners cut costs

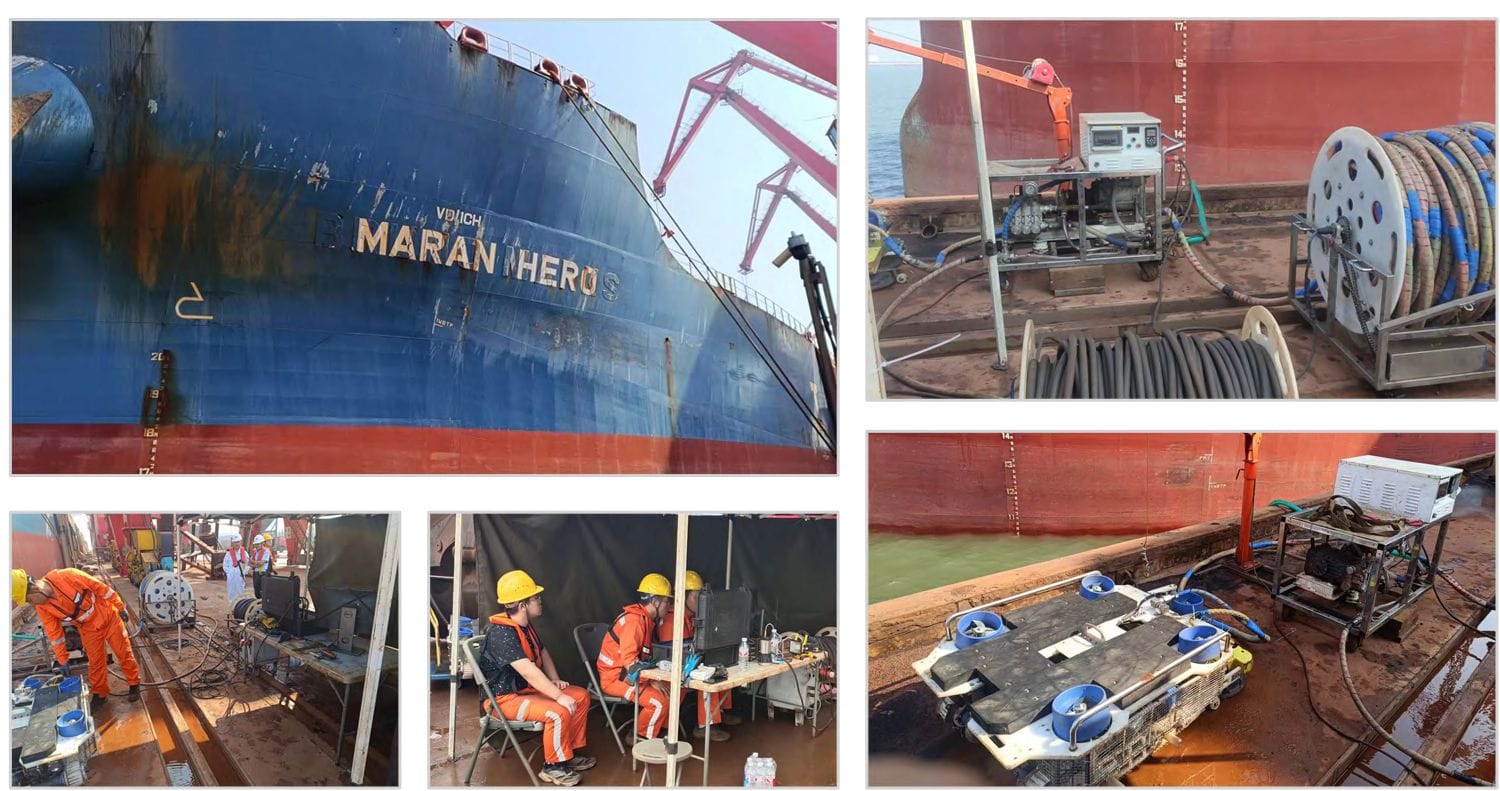

MARAN HERO

Hebei Huanghua Port

MARAN HERO Vessel

✅ Speed restored +1.5 knots | Fuel saving ~$6,000/day

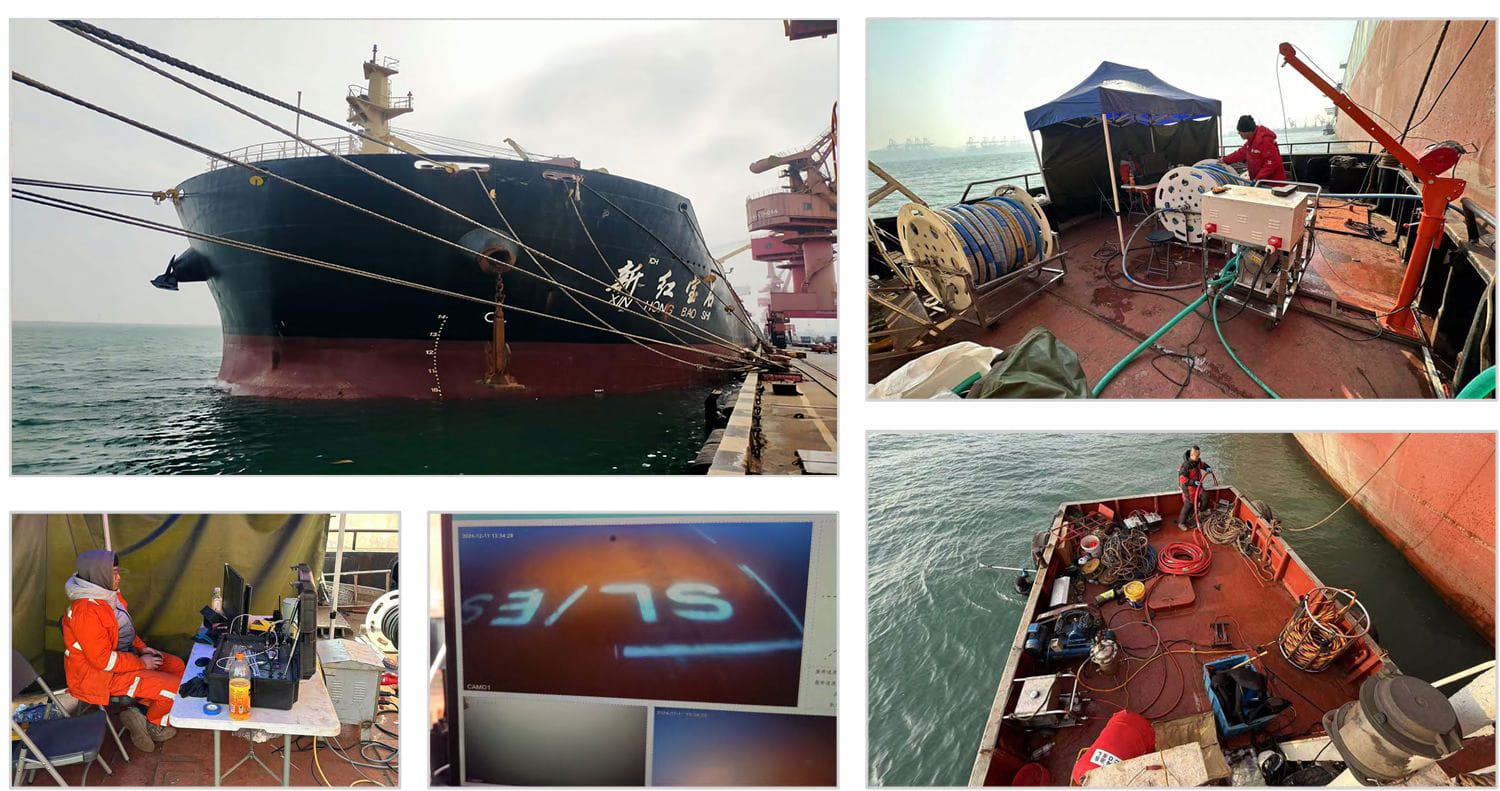

New Ruby

Lianyungang

New Ruby Vessel

✅ Cleaned in 6 hrs during cargo ops | No port delay

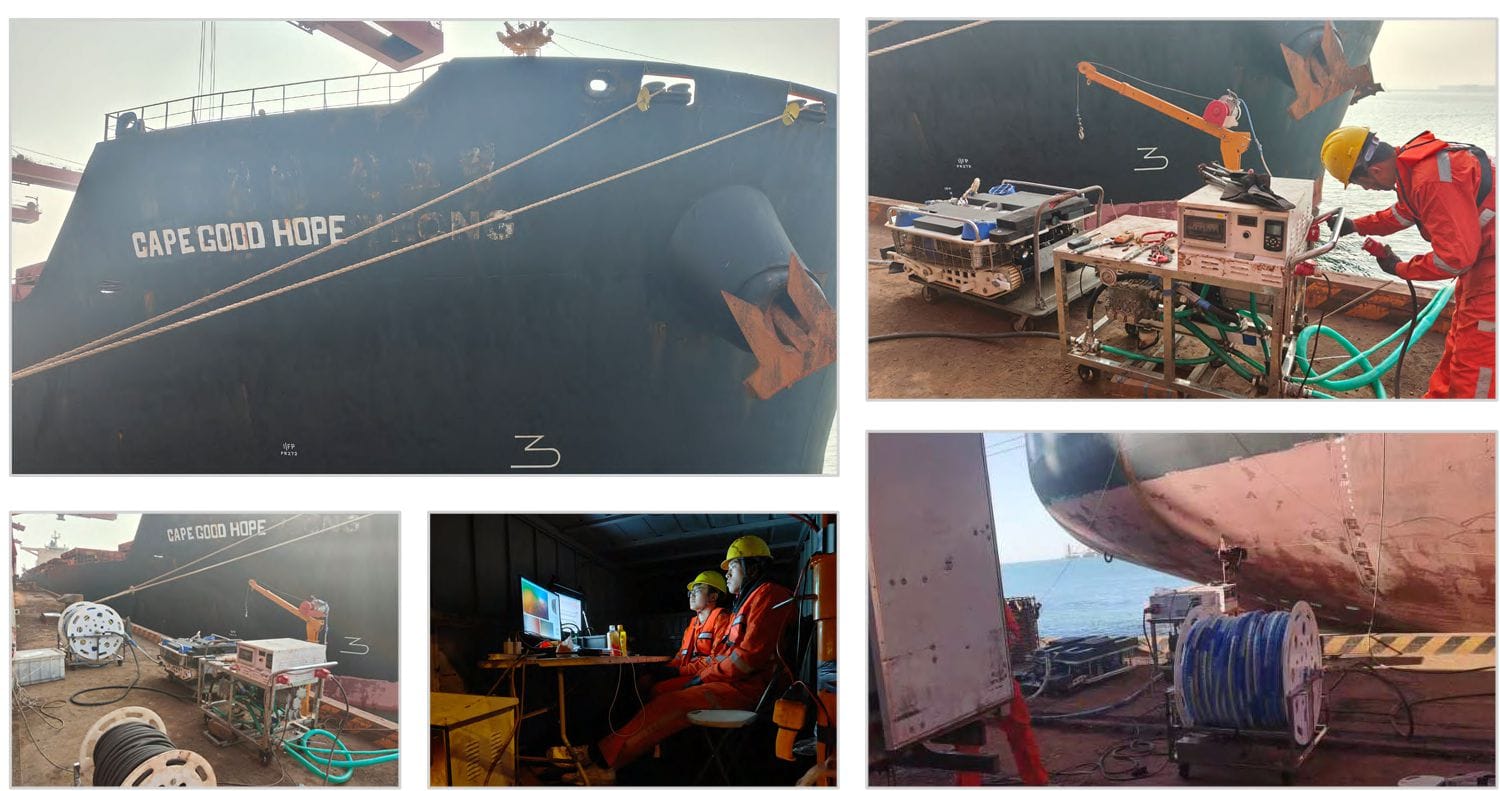

CAPE GOOD HOPE

Rizhao Lanqiao Port

CAPE GOOD HOPE Vessel

✅ Full clean despite turbid water | Customer rebooking scheduled

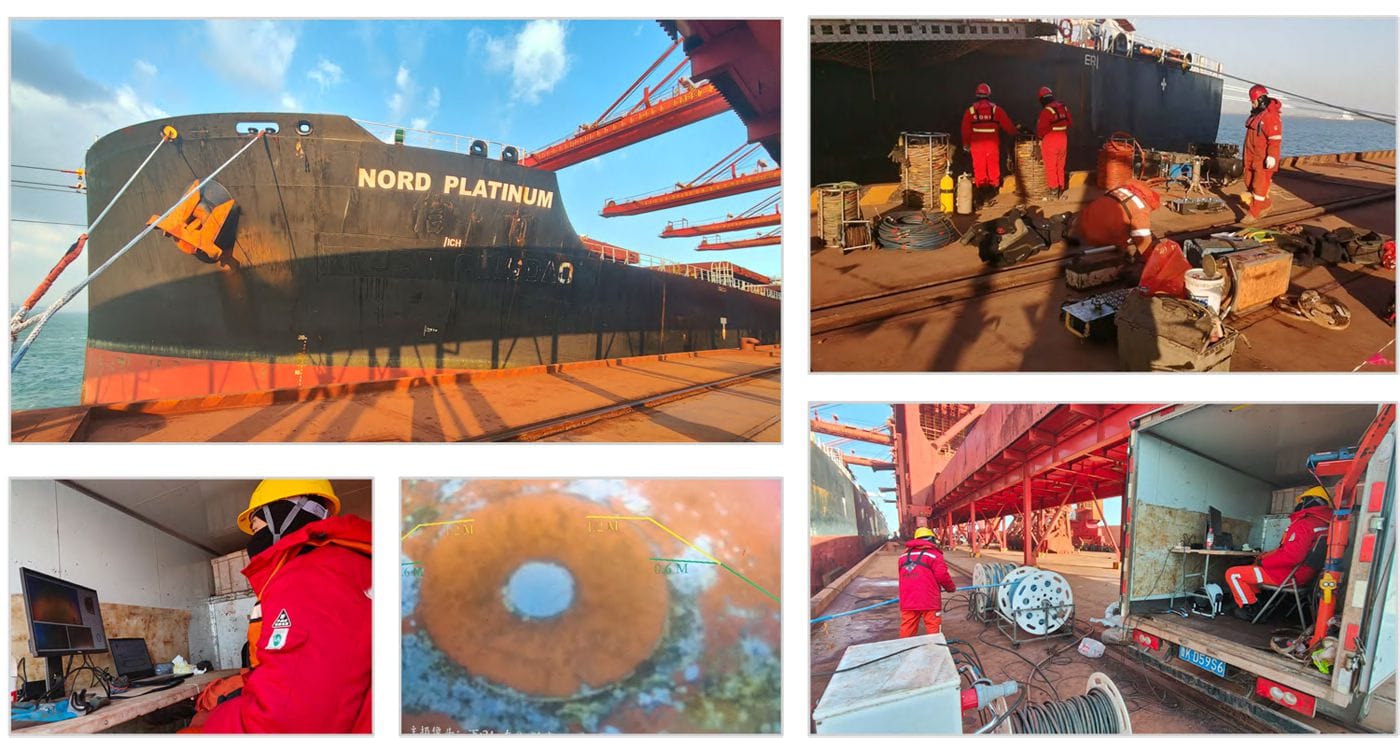

NORD PLATINUM

Yantai West Port

NORD PLATINUM Vessel

✅ Zero paint damage | Coating warranty preserved

Engineered to Outperform

Three fundamental advantages that make our robot the clear choice for serious hull maintenance

Powerful Cleaning Capacity

The only technology that can thoroughly remove calcified barnacles, thick-shell oysters and aged algae layers — ideal for heavily fouled vessels that have not been cleaned for a long time.

High Efficiency & Low Cost

Single unit efficiency reaches 400–800 m²/h, far exceeding manual work. Only electric power is required with no high-pressure water system, resulting in low consumable costs.

Reliable Structure & Easy Maintenance

No high-pressure pumps or easily clogged nozzles. Durable steel brushes — one set cleans 5–10 vessels — with a quick replacement design that minimizes downtime.

Choose the Right Robot for Your Fleet

From compact inspection units to heavy-duty cleaning systems — we have a model for every hull type and operating condition

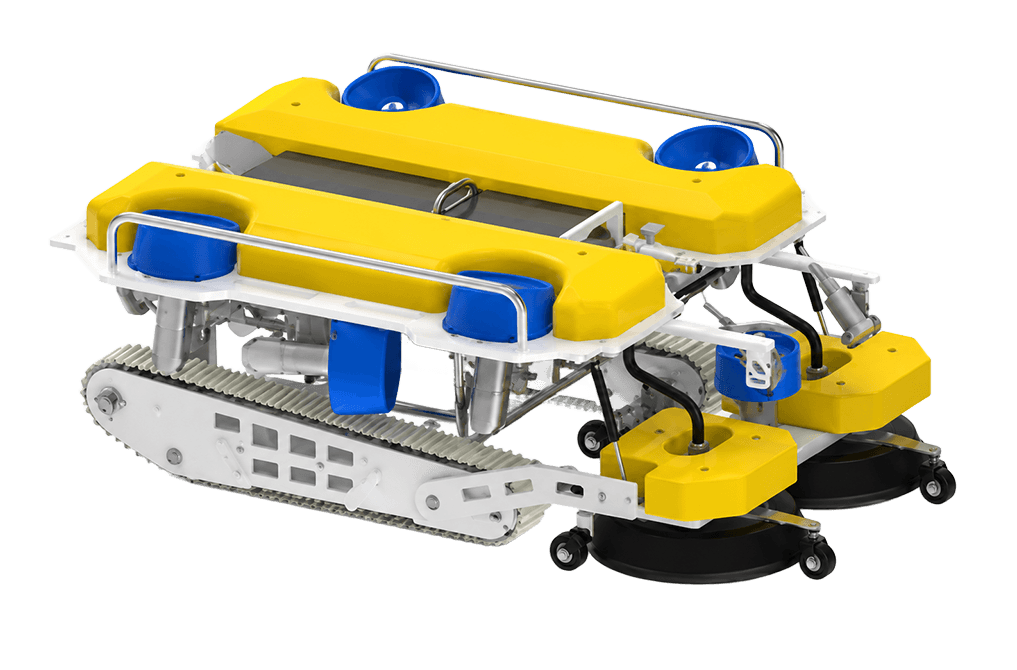

High-Pressure Cavitation Model
High-Pressure Cavitation Model

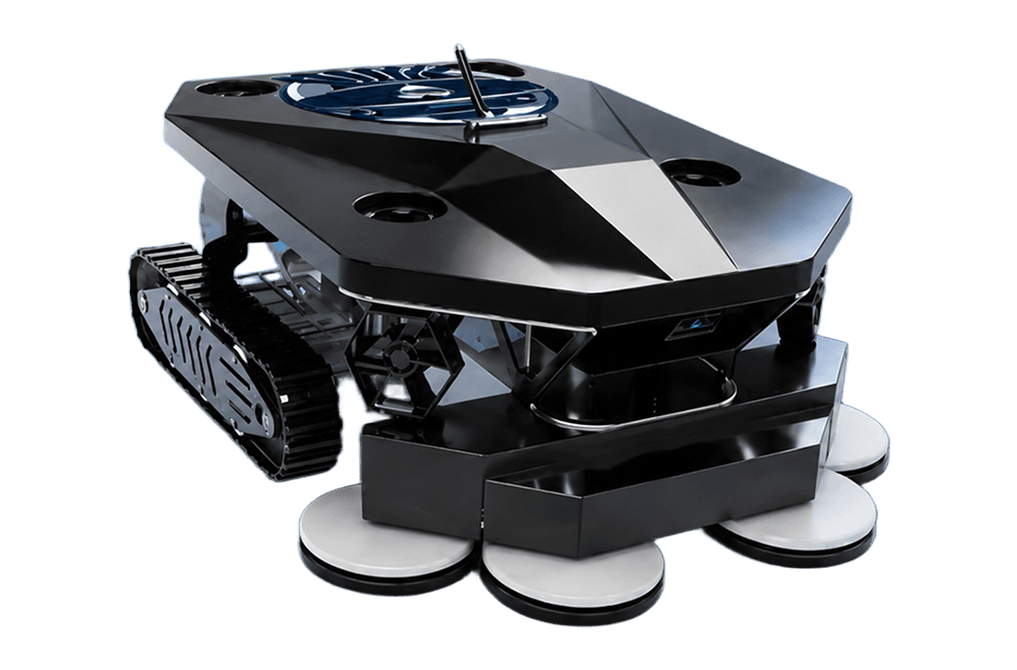

Steel Brush Mechanical Model
Steel Brush Mechanical Model

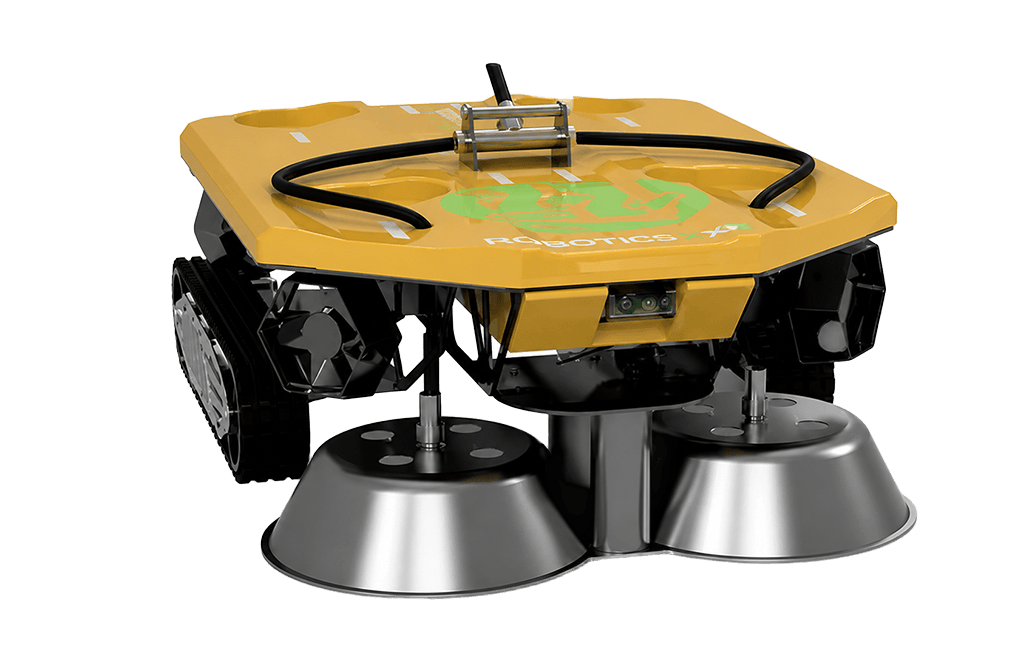

Compact Light-Duty Model
Compact Light-Duty Model

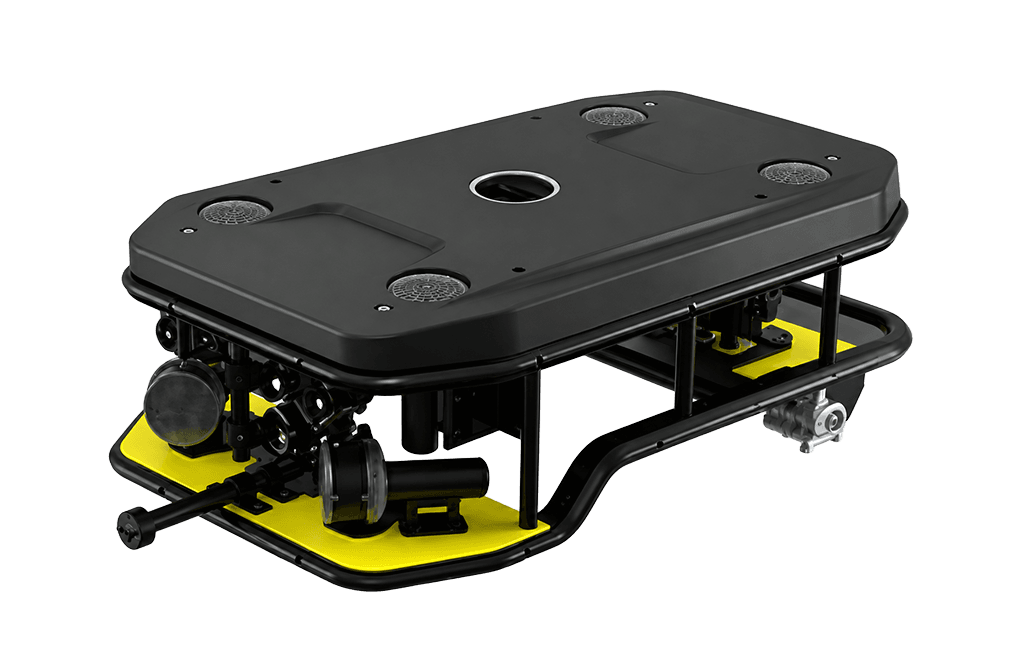

Inspection & Survey Model
Inspection & Survey Model

Estimate Your Annual Fuel Saving

Based on real operating profiles – see how much regular cleaning can save

$0
Estimated Annual Fuel Saving
Based on 15% drag reduction typical after cleaning. Verified by customer fleet data.
Get a Fleet-Wide Assessment

Certifications & Qualifications

Innovative Underwater Robotics

Marine
Technology
Qualifications

PeakForce boasts comprehensive R&D capabilities in underwater robot components and complete machines. The hardware and software of the ship cleaning robot system are all jointly developed, certified as a National Sci-Tech SME and High-Tech Enterprise.

Certification 1
Certification 2

28+ Partners

Trusted by 200+ vessels worldwide

Partner
Partner
Partner
Partner
Partner
Partner
Partner
Partner
Partner
Partner
Partner
Partner
Partner
Partner
Partner

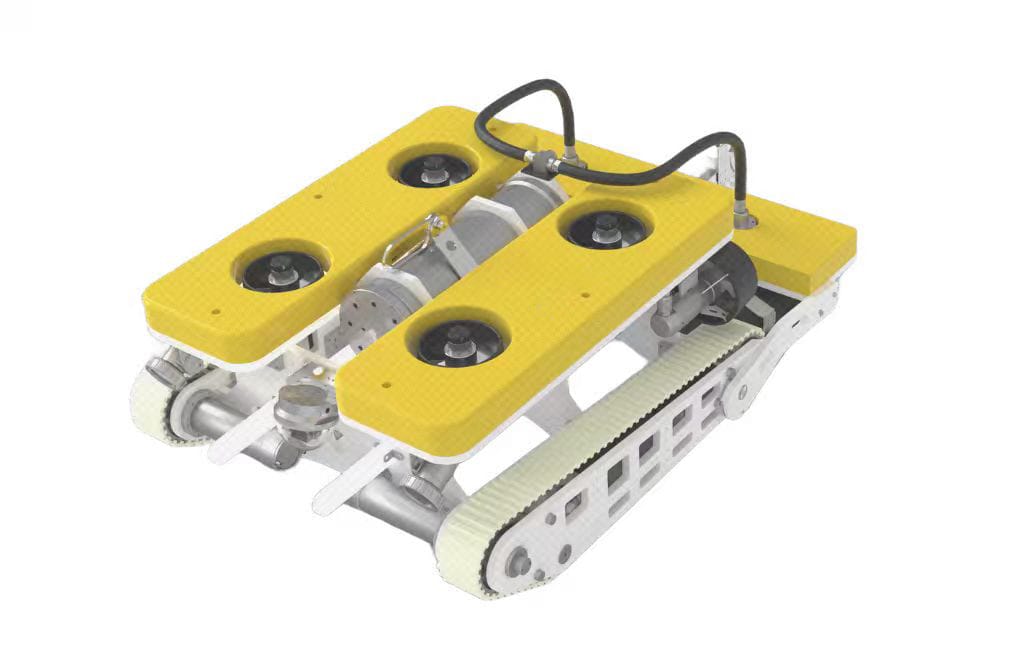

Full Technical Specifications

Click to expand each category for complete parameters of our latest hull cleaning robot

Mobility & Navigation System

Mobility ModeCrawling + ROV Suspension (Dual Mode)
AdsorptionMagnetic / Vacuum
Operation ModesManual / Hybrid / Autonomous
NavigationDeep Assist + Obstacle Detection
PositioningRelative Ship Body Positioning
BVLOS SupportYes

Physical Parameters

Dimensions (L×W×H)1300 × 900 × 600 mm
Dry Weight70 kg
Brushing Width22 inches
Max Speed1.5 m/s (4.9 ft/s)
Single Operation CoverageUp to 50 m²
PortabilitySingle-Person Portable

Cleaning System

Brush Pans2–5 × 100 mm
Cleaning Width1.2 m
Productivity2× First-Gen Model
Coverage Efficiency70%
Overlap Distance0.5 m
Single Machine Efficiency400–800 m²/h
Multi-Device ParallelSupported
Cleaning AgentBiodegradable

Sensors & Inspection System

Ultrasonic Probes2 × 2.25 MHz
SonarHigh-Resolution Multi-Beam
CamerasFront / Rear / Downward HD + Illumination
Thickness MeasurementSupported
Corrosion DetectionSupported
Hull SurveyingFull Coverage
Sampling IntervalProgrammable (Dirt Rate / Coating Integrity)
Bridge/Tunnel InspectionSupported

Safety & Environmental Protection

Paint Damage MonitoringBrush Disc Pressure Feedback
Chemical PollutionReduced (Biodegradable Agent)
CompatibilityCoating-Independent
Suitable VesselsCargo Ships / Yachts / Naval

Integrated Platform & Economic Impact

DashboardDWiSe: Real-Time 3D Surveying
Report GenerationAutomated
Cloud PlatformHistorical Data Access
Digital TwinLong-Term Monitoring & Comparison
Fuel Saving10–20%
Carbon ReductionYes
IMO ComplianceFull
ROIFast Payback

Frequently Asked Questions

How does the robot attach to different hulls?
It uses a flexible magnetic & vacuum adsorption system — powerful magnetic grip for steel hulls, vacuum suction for aluminum and fiberglass.
Will the steel brushes damage the paint?
No. Brush disc pressure feedback monitors contact in real time, preventing excessive force. Coatings remain intact even on delicate surfaces.
Can it operate in zero-visibility water?
Yes. Proprietary turbid-water cameras and obstacle-avoidance algorithms allow operation in ports like Shanghai with near-zero visibility.
What ports do you cover?
We operate at most major Chinese ports (Huanghua, Lianyungang, Rizhao, Yantai, etc.) and are expanding internationally.
How long does a full clean take?
Typically under 8 hours, depending on vessel size and fouling level. Cleaning can be scheduled alongside cargo operations where port regulations permit, with full safety coordination in place.
What's the typical fuel saving?
Shipowners report 10-18% fuel reduction after cleaning, which often translates to tens of thousands of dollars saved per voyage.
